MH-FG-1000A Mechanical Stretch and Automatic Pallet Stretch Wrapper

Soft start/stop, turntable automatic home position, easy operation, Optoelectronic switch that automatically measure the height of goods, adopt the Europe technology for anti-tension, confirm the speed of lifting motor.

*Power voltage:

1/3 P,AC 220/380V,50/60 HZ

* Turntable Speed

0~10 prm

*Turntable Dia.

Φ 1500mm

*Mast height

H2400mm

*Packaging material:

 width≤500 mm,out dia. ≤Φ280 mmLLDPE

*capacity:

1500kg;

*Max  height

2000 mm

*optional attached:

①.Ramp

*Noise :

≤75 DB

*Surrounding:

Humidity ≤98%temperature -10℃～40℃

*Lubricating material:

Common lubricating grease

MH-FG-2000A  Mechanical Stretch
MH-FG-2000B  Power pre-Stretch

Automatic Pallet Stretch Wrapper

Soft start/stop, turntable home position, adopt PLC and transducer control, reliable  performance, easy operation, and optoelectronic switch automatic measure goods height.

*Power Voltage:

1 P  AC 220/110V  50/60 Hz

Speed turntable

0～10 r/m

*Turntable Dia.

Φ 1500mm （optionalΦ1650/Φ1800/Φ2000/Φ2200）

*Mast height

H2400mm （optional 2000/2700/3000/3200/3400）

*Film

LLDPE film, width<=500mm,out diameter<=280mm

*Capacity

Φ 1500 mm ：1500 kg;  ≥ Φ 1650 mm ：2000 kg ；

*Max height

mast height minus 400mm

*optional :

①.slope ② extraposition control box ③.electromagnetic brake

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃～40℃

*Lubricate material

Common lubricating grease

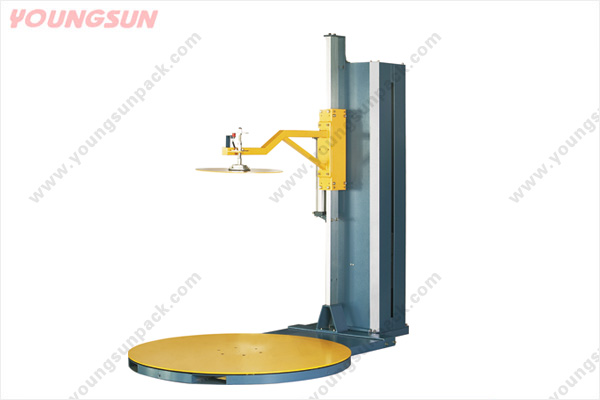

MH-FG-2000AC-A  Mechanical Stretch
MH-FG-2000BC-A  Power pre-Stretch

With Top-presser ;Automatic Pallet Stretch Wrapper

Soft start/stop, turntable automatic home position,
PLC control, reliable performance ,easy operation
Sensor test pallet height, suit light or unable fixed products

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Turntable speed

0～10r/min

* turntable Dia.

Φ 1500mm (optionalΦ1650/Φ1800/Φ2000/Φ2200)

*Press plate Dia:

Φ450 mm（optional Φ600 /Φ800）

*Mast height

2400mm (optional 2000/2700/3000/3200/3400)

*Packing film:

LLDPE film, width<=500mm,out dia.<=280mm

*Capacity:

Φ 1500 mm ：1500 kg;  ≥ Φ 1650 mm ：2000 kg

*Max height

The mast height minius 400mm

Top-press range：

500 mm ～mast height minius 400mm

*Choosable range

①.slope, ②.extraposition control box, ③.electromagnetic breake

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃～40℃

*Lubricant material:

common lubricating grease

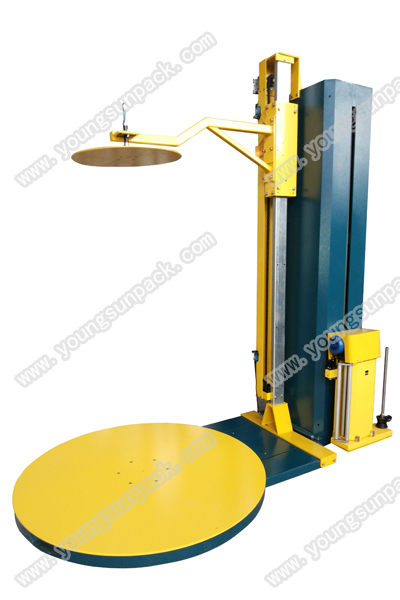

MH-FG-2000AC Mechanical Stretch
MH-FG-2000BC Power pre-Stretch

With Top-presser ;Automatic Pallet Stretch Wrapper

Soft start/stop, turntable automatic home position,
PLC control, reliable performance ,easy operation
Sensor test pallet height, suit light or unable fixed products

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Air pressure

0.4～0.6 MPa

*Speed of turntable

0～10r/min

*Dia.of turntable

Φ 1500mm (optionalΦ1650/Φ1800/Φ2000/Φ2200)

*Dia.of top-press plate

Φ450 mm(optionalΦ600 /Φ800)

*Mast height

H2400mm (optional 2000/2700/3000/3200/3400)

*Material:

LLDPE  film, width<=500mm,out diameter<=280mm

*Capacity

Φ1500 mm:1500 kg;≥ Φ 1650 mm :2000 kg

Max  height

=mast height-400mm

*Top-press travel :

   500mm

*Top-press range

1200mm～mast height-400mm,

Noise

≤75DB

Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Optional

①Ramp ② extraposition Control Box ③electromagnetic brake

MH-FG-2000AW-90°/270° W type Mechanical Stretch
MH-FG-2000BW-90°/270° W type Power pre-Stretch

Automatic Pallet Stretch Wrapper

Soft start/stop, home position,
PLC control, reliable performance ,easy operation
Sensor test pallet height

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Speed of turntable

0～10r/min

*Dia.of turntable

Φ 1500mm

*Mast height

H2400mm （optional 2000/2700/3000/3200/3400）

*Material

LLDPE film, width<=500mm,out diameter<=280mm

*Capacity

1000 kg;

*Max wrapping height

mast height-400mm

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricant material

Common lubricating grease

MH-FG-2000AW-180 °W type  Mechanical Stretch
MH-FG-2000BW-180 °W type  Power pre-Stretch

Automatic Pallet Stretch Wrapper

Soft start/stop, home position,
PLC control, reliable performance ,easy operation
Sensor test pallet height

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Speed of turntable

0～10r/min

*Dia.of turntable

Φ 1500mm

*Mast height

H2400mm （optional 2000/2700/3000/3200/3400）

*Packing  material

LLDPE film, width<=500mm,out diameter<=280mm

*Capacity

1000 kg;

Max wrapping height

mast height-400mm

*Optional :

①Ramp ② control panel ③ extraposition Control Box ④electromagnetic brake

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricant material

Common lubricating grease

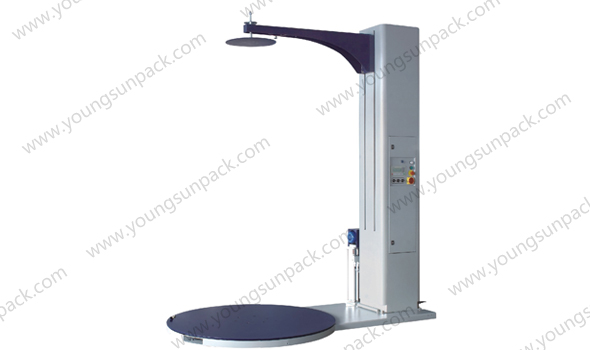

MH-FG-3000C  Power pre-Stretch

Built-in Top-presser ;Automatic Pallet Stretch Wrapper

Soft start/stop, home position,
PLC control, reliable performance ,easy operation
Sensor test pallet height, suit light or unable fixed products

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Speed of turntable

0～10prm

*Dia. of turntable

Φ 1500mm （optionalΦ1650/Φ1800/Φ2000）

*Dia. of top-press *plate

Φ450 mm（optionalΦ600 /Φ800）

*Mast height

H2400mm （optional 2700/3000）

*Packing material:

LLDPE film, width<=500mm,out diameter<=280mm

*Capacity

Φ1500 mm ：1500 kg;  ≥ Φ 1650 mm ：2000 kg ；

*Max  height

=mast height-400mm

*Top-press range：

500 mm ～mast height-400mm

* Machine weight

G.W.800kg/N.W.750kg

* Optional

①Ramp ②Panel ③LCD Control Box ④Magnetic clutch

*Surrounding:

Humidity ≤98%，temperature -10℃-40℃

MH-FG-2000F Automatic  Pallet  stretch Wrapper

With Remote Control

Automatic contact and break film, Soft start/stop, home position,PLC control, reliable performance, easy operation
Sensor test pallet height

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Air-pressure

0.4～0.6 MPa,

*Speed of turntable

0~10prm

*Dia.of turntable

Φ 1650mm （optionalΦ1800/Φ2000）

*Mast height

2400mm （optional 2000/2700/3000/3200/3400）

*Packing material

LLDPE film, width<=500mm,out diameter<=280mm

*Capacity

2000 kg

*Max wrapping height

=mast height-400mm

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricant material

Common lubricating grease

MH-FG-2000PA Mechanical Pallet Stretch film Wrapper with weigh
MH-FG-2000PB  Power pre-stretch film wrapper with weigh

Soft start/stop, Automatic home position,
PLC control, reliable performance, easy operation
optoelectronic switch automatic test pallet height and has weigh function

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Turntable speed:

0～10 rpm

* Turntable Dia.

Φ1500 mm（optionalΦ1650/Φ1800）

*Master height

2400 mm optional 2000/2700/3000/3200/3400

*Packing material

LLDPE film, width<=500mm,out diameter<=280mm

*Capacity

 Φ1500mm:1500kg,≥Φ1650mm:2000kg;

*Max.height

=Master height-400 mm

*height of pallet

 110 ±10 mm

*Weighing-precisio

 100g

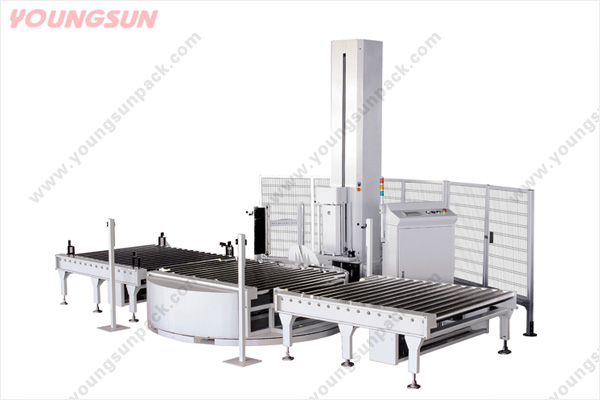

MH-FG-2000D Automatic film stretch wrapper

Be Suitable for unmanned  packaging system,
Automatic connect and break film, Soft start/stop, home position,
PLC control, reliable performance , easy operation
Sensor test pallet height, can be set different wrapping modes
and parameters according to different requirements.

*Power Voltage

3 P  AC 220/380V  50/60 Hz

*Air-pressure

0.4～0.6 MPa

*Speed of turntable

0～10prm

*Dia.of turntable

Φ 2000mm (customizable)

*Roller worktable height

≥450 mm（roller type）

*Roller worktable Dia;

Φ76mm

*Mast height

2400mm （optional 2000/2700/3000/3200/3400）

*Material Film

LLDPE film, width<=500mm,out diameter<=280mm

Capacity

2000 kg

Max wrapping height

mast height-400mm

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricant material

Common lubricating grease

*Optional

①powered roller conveyor ②sticking mould construction ③Safety fence ④.protective raster

MH-FG-2100 roll stretch wrapper
MH-FG-2101 roll stretch wrapper  with  pushing up device

Suitable for bathroom tissues .Soft start/stop, automatic home position, PLC control, reliable performance, easy operation
Sensor test pallet height, can be set different wrapping modes
and times according to different requirements. special for unmanned packaging system

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Air-pressure

0.4～0.6 MPa

*Speed of turntable

0~10r/min (Adjustable)

*Dia. turntable

Φ 2000mm （Commonly 2000,custom -Made）

*Turntable height

450mm

*Roller diameter

159mm

*Mast height

2000mm

*Packing material

LLDPE film, width<=500mm,out diameter<=280mm

*Capacity

1500 kg

*S Applicable product

Dia.:Φ600 ～ Φ1500 mm; Length: 400 ～1650 mm

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricant material

Common lubricating grease

*Optional

①LCD Control Box ②Magnetic powder brake

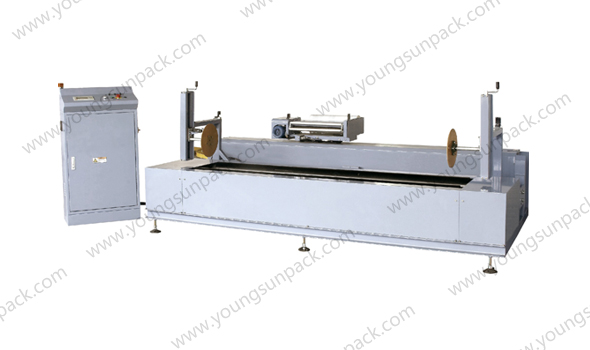

MH-FG-2100 Horizontal stretch wrapper for Fabric
MH-FG-2101 Horizontal stretch wrapper with pushing out device

Push out the products automatically after wrapping finished, can be designed for unmanned packaging system
Soft start/stop, automatic home position, Automatically messure height, reliable performance, easy operation, can design different wrapping modes and times according to different requirements. Suitable for fabric products

*Power Voltage

1 P  AC 220/110V  50/60 Hz

*Air pressure

0.4～0.6 MPa

*Roller speed
*Roller height:

0～45rpm
450mm

*Roller diameter

159mm,length:Custom-made

*Packing Material

LLDPE film, width<=500mm,out diameter<=280mm

*Capacity

1500 kg

*Applicable product

Dia.:Φ450 ～Φ1200 mm; Length: 400 ～ 220 mm

*Machine size

L(3100)mm *  W(1450)mm *  H(1227)mm(customizable)

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricating material

Common lubricating grease

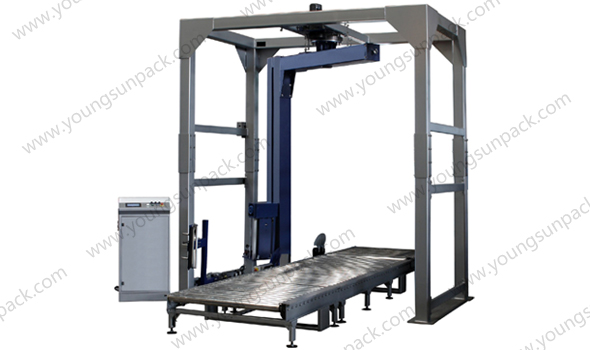

MH-FG-2300A  Rotary-arm  Film  Stretch  Wrapper (Mechanical stretch /Power pre-stretch)
MH-FG-2300AD Rotary-arm  Onl line automatic  Film  stretch Wrapper

Soft start/stop, home position,
PLC control, reliable performance, easy operation
Sensor test pallet height, can design different wrapping modes
and times according to different requirements .suit for heavy pallet, adopt customizable -size for wrapper, and also supply a set of full packaging system convey line

*Power Voltage

1 P/3P  AC 220/380V  50/60 Hz

*Air pressure

0.4～0.6 MPa

*Rotary-arm speed

0～22 rpm

*Rotary inner dia.

 Φ 1700 mm

*Mast height

2000mm （optional  2000/2700/3000/3200/3400）

*Film

LLDPE film, width<=500mm,out diameter<=280mm

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Electric brush

collecting ring

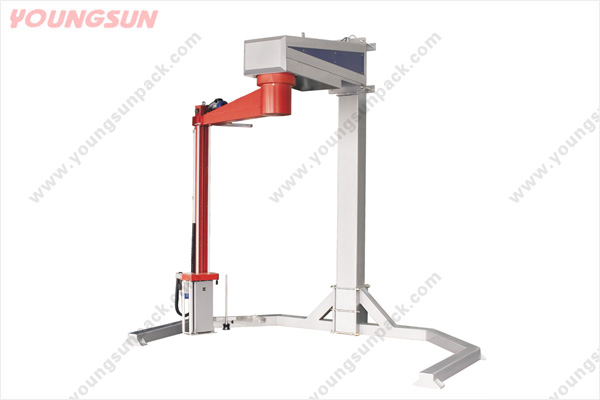

MH-FG-2300B  Rotary-arm  Pallet  Stretch  Wrapper (Mechanical stretch /Power pre-stretch)

Soft start/stop, home position,
PLC control, reliable performance, easy operation
Sensor test pallet height, can design different wrapping modes
and times according to different requirements .suit for heavy pallet, adopt customizable -size for wrapper, and also supply a set of full packaging system convey line

*Power Voltage

1 P/3P  AC 220/380V  50/60 Hz

*Packing speed:

0～15 rpm

*Mast height

3650mm

*Wrapping height

2400 mm

*Rotary inner dia.

Φ2000 mm

*Packing material

LLDPE film, width<=500mm,out diameter<=280mm

*Machine size

4000 x2000 x3120mm

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricating material

Common lubricating grease

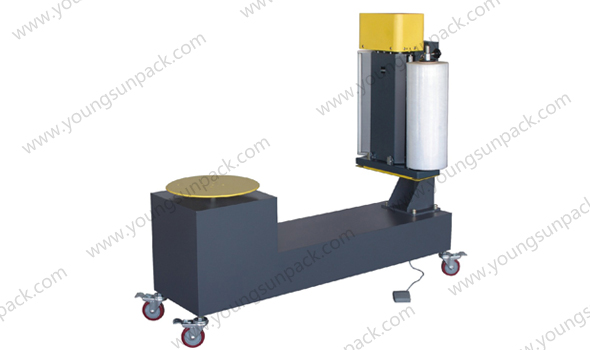

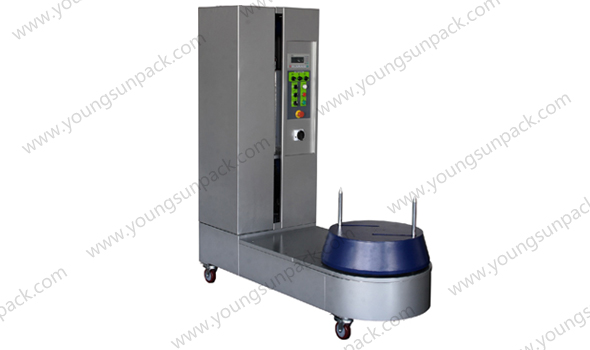

MH-FG-900B Use for Airport luggage stretch wrapper

*Power

1P AC220V /110V ,50/60H

*Speed of turntable

0-20rpm

*Table-board height

550mm

*Effective width

400 mm

*Max. size

L(250~1200)* W(200~400)*H(250~1200) mm

*Wrapping height

850 mm

*Capacity

60kg

*Dimensions of the *machine

L1600×W600×H1740mm

*Noise

≤75DB

MH-FG-810B  Mini carton stretch wrapper

*Power

1P AC220V /110V ,50/60Hz

*Speed of turntable

0-20 rpm

*Table-board height

650mm

*Dia. of turntable

Φ400 mm

*Machine size

L 1150 * W 400 * H 1400 mm

*Wrapping height

400 mm

*Capacity

80kg

*Packing material

LLDPE film, width ≤500 mm, out diameter ≤Φ280 mm

*Machine weight

75kg

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricating-material

Common lubricating grease

MH-FG-800B  Mini stretch wrapper (with forcing  press)

Power
*Air press

1P AC220V /110V ,50/60HZ
0.4～0.6 MPa

*Speed of turntable

0-20rpm

*Table-board height

650mm

*Dia. of turntable

Φ400 mm

*Wrapping height

400 ~500 mm;  500 ~ 650 mm；

*Capacity

80kg

*Packing material

LLDPE film, width ≤500 mm, out diameter ≤Φ280 mm

*Machine weight

110kg

*Noise

≤75DB

*Surroundings

Humidity ≤98%，temperature -10℃-40℃

*Lubricant-material

Common lubricating grease

CTP-600 Pre-stretch self-walk wrapping machine
CTP-601 Anti-stretch self-walk wrapping machine

Battery charger and battery indicator;The diameter of the detecting wheel is 320mm;Soft start +emergency stop +robot speed adjustable;Film carriage is driven by chain;Sensor detect the pallert height;With rising and falling program

Top and bottom layers adjutable

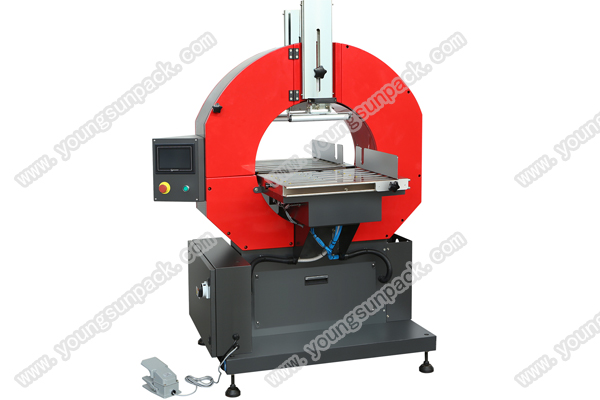

CTR-301 Horizontal stretch wrapping machine

CTR-401 Horizontal stretch wrapping machine

MH-FG-700 wrapping machine
