Key: vertical packaging machine,vertical form fill seal,vertical machine,vertical bagging machine,vertical sealing machines,vertical form fill seal machines,pouch packing machine manufacturer,automatic pouch packing machine
Our vertical sealing machines line of continuous motion vertical sealing machines machines features modular designs that can meet a wide variety of specifications.
Ranging from the vertical sealing machines – the world’s fastest continuous motion vertical form fill seal packaging machine to the vertical sealing machines Solitare – perfect for cheese or bulk packaging, our machines accommodate a wide variety of bag styles and options. Package liquids, solids, bulky or sticky items, both food and non-food with speed and precision.
Robot Total：15products

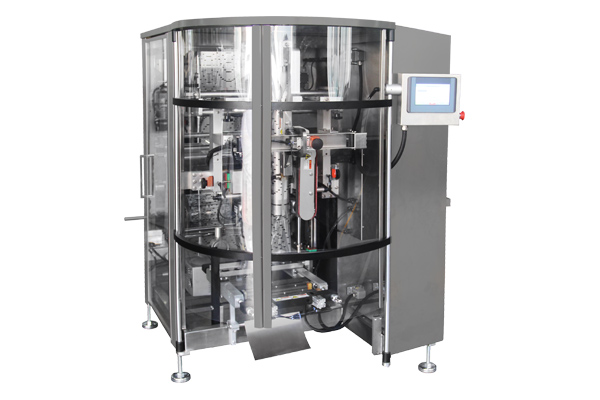

| YS-CS-2520-CP vertical packaging machine | |||
Continuous pull film movement ,Simple structure, Economical and practical |
|||
| Model | YS-CS-2520-CP-G |
YS-CS-2520-CP-GB |
YS-CS-2520-CP-4H-B |
Bag type |
Pillow bag 4 corner seal bag +bottom block |
Gusseted bag |
4 corner seal bag +bottom block |
Standard capacity |
10-120 bags/min |
10-120 bags/min |
10-120 bags/min |
| Pillow bag | Width : 60-250mm | Width : 60-250mm | |
| Length: 60-400mm | Length: 60-400mm | ||
| Gusseted bag | Width : 50-220mm | Width : 50-220mm | Width : 50-220mm |
| Depth : 35-110mm | Depth : 35-110mm | Depth : 35-110mm | |
corner seal bag |
Front width:65-170 |
|
Front width:65-170 |
Side width : 45-110 |
|
Side width : 45-110 |
|
| please note:(1.5*front width+side width)<300,side width not Include corner sealed | |||
Film parameter |
packaging material:OPP/AL/PE, PET/VMPET etc. |
||
Film diameter: ≤600mm |
|||
Core diameter:76mm |
|||
Total power |
5 KW |
||
Air pressure |
≥0.5MPa |
||
Air consumption |
HS closure, 0.32NL/cycle |
||
Outer dimensions (appr.) |
1800*1270*1615mm |
||
Weight (appr.) |
680kg |
||
Power supply (optional) |
3N-PN-50Hz 380V/220V (3P 5 wires) |
||
| YS-CS-3620-CP vertical form fill seal | |||
Continuous pull film movement ,Simple structure, Economical and practical |
|||
| Model | YS-CS-3620-CP-G |
YS-CS-3620-CP-GB |
YS-CS-3620-CP-4H-B |
Bag type |
Pillow bag 4 corner seal bag +bottom block |
Gusseted bag |
4 corner seal bag +bottom block |
Standard capacity |
10-110 bags/min |
10-110 bags/min |
10-110 bags/min |
| Pillow bag | Width : 60-360mm | Width : 60-360mm | |
| Length: 60-500mm | Length: 60-500mm | ||
| Gusseted bag | Width : 50-330mm | Width : 503320mm | Width : 50-330mm |
| Depth : 45-140mm | Depth : 45-140mm | Depth : 45-140mm | |
corner seal bag |
Front width:65-170 |
|
Front width:65-170 |
Side width : 45-110 |
|
Side width : 45-110 |
|
| please note:(1.5*front width+side width)<400,side width not Include corner sealed | |||
Film parameter |
packaging material:OPP/AL/PE, PET/VMPET etc. |
||
Film diameter: ≤600mm |
|||
Core diameter:76mm |
|||
Total power |
5 KW |
||
Air pressure |
≥0.5MPa |
||
Air consumption |
HS closure, 0.32NL/cycle |
||
Outer dimensions (appr.) |
2000*1500*2060mm |
||
Weight (appr.) |
780kg |
||
Power supply (optional) |
3N-PN-50Hz 380V/220V (3P 5 wires) |
||
| YS-BS-2520-CP vertical sealing machine | |||
| The back sealed series machine are very popular.The continuous motion vertical machine designed for packaging a large variety of products at high speeds.Continuous pull film movement ,Simple structure, Economical and practical Continuous motion leads to high productivity Lean machine concept enables cost-effective production Maintenance-free servo-technology ensures reliable production PLC controls enable precise machine movements for smooth production and good bag quality Intuitive HMI allows easy operation and short training time Open machine concept for easy access and maintenance Compact machine design for good ergonomics, product-conserving filling and saving space | |||
| Model | YS-BS-2520-CP-A | YS-BS-2520-CP-P | YS-BS-2520-CP-GB |
| Bag type | 1 .Pillow bag | Only pillow bag | Gusseted bag+bottom block |
| 2. Gusseted bag | |||
| Standard capacity | 10-150 bags/min | 10-150 bags/min | 10-120 bags/min |
| Size of pillow bag Max size: 4.5L |
Width : 60-250mm | Width : 60-250mm | Width : 60-250mm |
| Length: 60-400mm | Length: 60-400mm | Length: 60-400mm | |
| Size of Gusseted bag Width>2 times side depth |
Width : 50-220mm | Width : 50-220mm | |
| Depth : 35-110mm | Depth : 35-110mm | ||
| Length: 60-400mm | Length: 60-400mm | ||
| Film parameter | packaging material:OPP/AL/PE, PET/VMPET etc. | ||
| Film diameter: ≤600mm | |||
| Core diameter:76mm | |||
| Total power | 5 KW | ||
| Air pressure | ≥0.5MPa | ||
| Air consumption | HS closure, 0.32NL/cycle | ||
| Outer dimensions (appr.) | 1800*1270*1615mm | ||
| Weight (appr.) | 680kg | ||
| Power supply (optional) | 3N-PN-50Hz 380V/220V (3P 5 wires) | ||
| YS-BS-3620-CP | |||
| The back sealed series machine are very popular.The continuous motion vertical machine designed for packaging a large variety of products at high speeds.Continuous pull film movement ,Simple structure, Economical and practical Continuous motion leads to high productivity Lean machine concept enables cost-effective production Maintenance-free servo-technology ensures reliable production PLC controls enable precise machine movements for smooth production and good bag quality Intuitive HMI allows easy operation and short training time Open machine concept for easy access and maintenance Compact machine design for good ergonomics, product-conserving filling and saving space |
|||
| Model | YS-BS-3620-CP-A | YS-BS-3620-CP-P | YS-BS-3620-CP-GB |
| Bag type | 1 .Pillow bag | Only pillow bag | Gusseted bag+bottom block |
| 2. Gusseted bag | |||
| Standard capacity | 10-110 bags/min | 10-130 bags/min | 10-100 bags/min |
| Size of pillow bag Max size: 4.5L |
Width : 60-360mm | Width : 60-360mm | Width : 60-360mm |
| Length: 60-500mm | Length:60-500mm | Length:60-500mm | |
| Size of Gusseted bag Width>2 times side depth |
Width : 50-330mm | Width : 50-330mm | |
| Depth : 45-140mm | Depth : 45-140mm | ||
| Length: 60-500mm | Length: 60-500mm | ||
| Film parameter | packaging material:OPP/AL/PE, PET/VMPET etc. | ||
| Film diameter: ≤600mm | |||
| Core diameter:76mm | |||
| Total power | 5 KW | ||
| Air pressure | ≥0.5MPa | ||
| Air consumption | HS closure, 0.32NL/cycle | ||
| Outer dimensions (appr.) | 2000*1500*2060mm< | ||
| Weight (appr.) | 780kg | ||
| Power supply (optional) | 3N-PN-50Hz 380V/220V (3P 5 wires) | ||
| YS-BS-2520-IP | |||
| Intermittent pull film movement ,Simple structure, Economical and practical Continuous motion leads to high productivity Lean machine concept enables cost-effective production Maintenance-free servo-technology ensures reliable production PLC contr0ols enable precise machine movements for smooth production and good bag quality Intuitive HMI allows easy operation and short training time Open machine concept for easy access and maintenance Compact machine design for good ergonomics, product-conserving filling and saving space |
|||
| Model | YS-BS-2520-IP-A | YS-BS-2520-IP-P | YS-BS-2520-P-GB |
| Bag type | 1 .Pillow bag | Only pillow bag | Gusseted bag+ bottom block |
| 2. Gusseted bag | |||
| Standard capacity | 10-100 bags/min | 10-100 bags/min | 10-100 bags/min |
| Size of pillow bag Max size: 4.5L |
Width : 60-250mm | Width : 60-250mm | Width : 60-250mm |
| Length: 60-400mm | Length: 60-400mm | Length: 60-400mm | |
| Size of Gusseted bag Width>2 times side depth |
Width : 50-220mm | Width : 50-220mm | |
| Depth : 35-110mm | Depth : 35-110mm | ||
| Length: 60-400mm | Length: 60-400mm | ||
| Film parameter | packaging material:OPP/AL/PE, PET/VMPET etc. | ||
| Film diameter: ≤600mm | |||
| Core diameter:76mm | |||
| Total power | 5 KW | ||
| Air pressure | ≥0.5MPa | ||
| Air consumption | HS closure, 0.32NL/cycle | ||
| Outer dimensions (appr.) | 1800*1270*1615mm | ||
| Weight (appr.) | 680kg | ||
| Power supply (optional) | 3N-PN-50Hz 380V/220V (3P 5 wires) | ||
| YS-BS-3620-IP | |||
| Intermittent pull film movement ,Simple structure, Economical and practical Continuous motion leads to high productivity Lean machine concept enables cost-effective production Maintenance-free servo-technology ensures reliable production PLC contr0ols enable precise machine movements for smooth production and good bag quality Intuitive HMI allows easy operation and short training time Open machine concept for easy access and maintenance Compact machine design for good ergonomics, product-conserving filling and saving space |
|||
| Model | YS-BS-3620-IP-A | YS-BS-3620-IP-P | YS-BS-3620-IP-GB |
| Bag type | 1 .Pillow bag | Only pillow bag | Gusseted bag+ bottom block |
| 2. Gusseted bag | |||
| Standard capacity | 10-80 bags/min | 10-80 bags/min | 10-80 bags/min |
| Size of pillow bag Max size: 4.5L |
Width : 60-360mm | Width : 60-360mm | Width : 60-360mm |
| Length: 60-500mm | Length: 60-500mm | Length: 60-500mm | |
| Size of Gusseted bag Width>2 times side depth |
Width : 50-330mm | Width : 50-330mm | |
| Depth : 45-140mm | Depth : 45-140mm | ||
| Length: 60-500mm | Length: 60-500mm | ||
| Film parameter | packaging material:OPP/AL/PE, PET/VMPET etc. | ||
| Film diameter: ≤600mm | |||
| Core diameter:76mm | |||
| Total power | 5 KW | ||
| Air pressure | ≥0.5MPa | ||
| Air consumption | HS closure, 0.32NL/cycle | ||
| Outer dimensions (appr.) | 2000*1500*2060mm | ||
| Weight (appr.) | 780kg | ||
| Power supply (optional) | 3N-PN-50Hz 380V/220V (3P 5 wires) | ||
| YS-BS-14D-CP-P | |
| This series machine is high speed,it can be integrated with various filling systems,suitable for many kinds of products with small bag but very fast speed. Continuous pull film movement ,Simple structure, Economical and practical Continuous motion leads to high productivity Lean machine concept enables cost-effective production Maintenance-free servo-technology ensures reliable production PLC controls enable precise machine movements for smooth production and good bag quality Intuitive HMI allows easy operation and short training time Open machine concept for easy access and maintenance Compact machine design for good ergonomics, product-conserving filling and saving space |
|
| Model | YS-BS-14D-CP-P |
| Bag type | Pillow bag ,double lines |
| Standard capacity | 10-120 bags/min per line,total 20-240 bags/min |
| Bag size | Width : 65-140mm |
| Length: 60-300mm | |
| Film parameter | packaging material:OPP/AL/PE, PET/VMPET etc. |
| Film width:max 300mm/line | |
| Film diameter: ≤400mm | |
| Core diameter:76mm | |
| Total power | 5 KW |
| Air pressure | ≥0.5MPa |
| Air consumption | HS closure, 0.35NL/cycle |
| Outer dimensions (appr.) | 1800*1270*1615mm |
| Weight (appr.) | 800kg |
| Power supply (optional) | 3N-PN-50Hz 380V/220V (3P 5 wires) |
| YS-BSV-2520-CP | |||
| Special for thick film. The back sealed series machine are very popular.The continuous motion vertical machine designed for packaging a large variety of products at high speeds.Continuous pull film movement ,Simple structure, Economical and practical Continuous motion leads to high productivity Lean machine concept enables cost-effective production Maintenance-free servo-technology ensures reliable production PLC controls enable precise machine movements for smooth production and good bag quality Intuitive HMI allows easy operation and short training time Open machine concept for easy access and maintenance Compact machine design for good ergonomics, product-conserving filling and saving space |
|||
| Model | YS-BSV-2520-CP-A | YS-BSV-2520-CP-P | YS-BSV-2520-CP-GB |
| Bag type | 1 .Pillow bag | Only pillow bag | Gusseted bag+ bottom block |
| 2. Gusseted bag | |||
| Standard capacity | 10-150 bags/min | 10-150 bags/min | 10-120 bags/min |
| Size of pillow bag Max size: 4.5L |
Width : 60-250mm | Width : 60-250mm | Width : 60-250mm |
| Length: 60-400mm | Length:60-400mm | Length:60-400mm | |
| Size of Gusseted bag Width>2 times side depth |
Width : 50-220mm | Width : 50-220mm | |
| Depth : 35-110mm | Depth : 35-110mm | ||
| Length: 60-400mm | Length: 60-400mm | ||
| Film parameter | packaging material:OPP/AL/PE, PET/VMPET etc. |
||
Film diameter: ≤600mm |
|||
Core diameter:76mm |
|||
Total power |
5 KW |
||
Air pressure |
≥0.5MPa |
||
| Air consumption | HS closure, 0.32NL/cycle |
||
Outer dimensions (appr.) |
1800*1270*1615mm |
||
Weight (appr.) |
680kg |
||
Power supply (optional) |
3N-PN-50Hz 380V/220V (3P 5 wires) |
||
| YS-BSV-3620-CP | |||
| Special for thick film. The back sealed series machine are very popular.The continuous motion vertical machine designed for packaging a large variety of products at high speeds.Continuous pull film movement ,Simple structure, Economical and practical Continuous motion leads to high productivity Lean machine concept enables cost-effective production Maintenance-free servo-technology ensures reliable production PLC controls enable precise machine movements for smooth production and good bag quality Intuitive HMI allows easy operation and short training time Open machine concept for easy access and maintenance Compact machine design for good ergonomics, product-conserving filling and saving space |
|||
| Model | YS-BSV-3620-CP-A< | YS-BSV-3620-CP-P | YS-BSV-3620-CP-GB |
| Bag type | 1 .Pillow bag | Only pillow bag | Gusseted bag+ bottom block |
| 2. Gusseted bag | |||
| Standard capacity | 10-110 bags/min | 10-130 bags/min> | 10-100 bags/min |
| Size of pillow bag Max size: 4.5L |
Width : 60-360mm | Width : 60-360mm | Width : 60-360mm |
| Length: 60-500mm | Length:60-500mm | Length:60-500mm | |
| Size of Gusseted bag Width>2 times side depth |
Width : 50-330mm | Width : 50-330mm | |
| Depth : 45-140mm | Depth : 45-140mm | ||
| Length: 60-500mm | Length: 60-500mm | ||
| Film parameter | packaging material:OPP/AL/PE, PET/VMPET etc. |
||
Film diameter: ≤600mm |
|||
Core diameter:76mm |
|||
| Total power | 5 KW |
||
| Air pressure | ≥0.5MPa |
||
| Air consumption | HS closure, 0.32NL/cycle |
||
| Outer dimensions (appr.) | 2000*1500*2060mm |
||
| Weight (appr.) | 780kg |
||
| Power supply (optional) | 3N-PN-50Hz 380V/220V (3P 5 wires) |
||
| YS-D-2520-IP-ZIP/YS-D-3620-IP-ZIP | ||
| YS-D-2520-IP-ZIP Serial VFFS Machine is an intermittent motion vertical machine designed for packaging a large variety of products at high speeds.DOY bag with Zip ,intermittent pull film movement ,Simple structure, Economical and practical Lean machine concept enables cost-effective production Maintenance-free servo-technology ensures reliable production PLC controls enable precise machine movements for smooth production and good bag quality Intuitive HMI allows easy operation and short training time Open machine concept for easy access and maintenance Compact machine design for good ergonomics, product-conserving filling and saving space |
||
| Model | YS-D-2520-IP-ZIP | YS-D-3620-IP-ZIP |
| Standard capacity | 10-45 bags/min, | 10-35 bags/min, |
| Bag size (Customized)> |
Width : 45-100mm | Width : 65-257mm |
| Depth : 60-400mm | Depth : 40-140mm | |
| Length: 60-200mm | Length: 60-400mm | |
| Film parameter | packaging material:OPP/AL/PE, PET/VMPET etc. |
|
Film diameter: ≤600mm |
||
Core diameter:76mm |
||
| Zip material | Heat-sealing zip |
|
Zip diameter |
≤600mm |
|
Zip core diameter |
38mm |
|
Total power |
5 KW |
|
Air pressure |
≥0.5MPa |
|
Air consumption |
HS closure, 0.32NL/cycle |
|
Outer dimensions (appr.) |
1800*1270*1615mm | 2000*1500*2060mm |
| Weight (appr.) | 700kg | 800kg |
| Power supply (optional) | 3N-PN-50Hz 380V/220V (3P 5 wires) |
|
| YS-SS-2520-CP | ||
| This series machine is very popular,it can be integrated with various filling systems,suitable for many kinds of products. Continuous pull film movement ,Simple structure, Economical and practical Continuous motion leads to high productivity Lean machine concept enables cost-effective production Maintenance-free servo-technology ensures reliable production PLC controls enable precise machine movements for smooth production and good bag quality Intuitive HMI allows easy operation and short training time Open machine concept for easy access and maintenance Compact machine design for good ergonomics, product-conserving filling and saving space |
||
| Model | YS-SS-2520-CP-3S | YS-SS-2520-CP-4S |
| Bag type | 3-side sealed bag | 4-side sealed bag |
| Standard capacity | 10-120 bags/min | 10-120 bags/min |
| Bag size | Width : 60-400mm | Width : 60-400mm |
| Length: 60-260mm | Length:60-260mm | |
| Film parameter | packaging material:OPP/AL/PE, PET/VMPET etc. |
|
Film diameter: ≤600mm |
||
Core diameter:76mm |
||
Total power |
5 KW |
|
| Air pressure | ≥0.5MPa |
|
| Air consumption | HS closure, 0.32NL/cycle |
|
Outer dimensions (appr.) |
1800*1270*1615mm |
|
| Weight (appr.) | 680kg |
|
| Power supply (optional) | 3N-PN-50Hz 380V/220V (3P 5 wires) |
|
| YS-SS-3620-CP | ||
| This series machine is very popular,it can be integrated with various filling systems,suitable for many kinds of products. Continuous pull film movement ,Simple structure, Economical and practical Continuous motion leads to high productivity Lean machine concept enables cost-effective production Maintenance-free servo-technology ensures reliable production PLC controls enable precise machine movements for smooth production and good bag quality Intuitive HMI allows easy operation and short training time Open machine concept for easy access and maintenance Compact machine design for good ergonomics, product-conserving filling and saving space |
||
| Model | YS-SS-2520-CP-3S | YS-SS-2520-CP-4S |
| Bag type | 3-side sealed bag | 4-side sealed bag |
| Standard capacity | 10-95 bags/min | 10-95 bags/min |
| Bag size | Width : 60-500mm | Width : 60-500mm |
| Length: 60-365mm | Length:60-260mm | |
| Film parameter | packaging material:OPP/AL/PE, PET/VMPET etc. |
|
Film diameter: ≤600mm |
||
Core diameter:76mm |
||
Total power |
5 KW |
|
| Air pressure | ≥0.5MPa |
|
Outer dimensions (appr.) |
2000*1500*2060mm |
|
| Weight (appr.) | 780kg |
|
| Power supply (optional) | 3N-PN-50Hz 380V/220V (3P 5 wires) |
|
| YS-SS-2520-IP-3S(4S)-ZIP | ||
| This series machine is very popular,it can be integrated with various filling systems,suitable for many kinds of products. Continuous pull film movement ,Simple structure, Economical and practical Continuous motion leads to high productivity Lean machine concept enables cost-effective production Maintenance-free servo-technology ensures reliable production PLC controls enable precise machine movements for smooth production and good bag quality Intuitive HMI allows easy operation and short training time Open machine concept for easy access and maintenance Compact machine design for good ergonomics, product-conserving filling and saving space |
||
| Model | YS-SS-2520-IP-3S-ZIP | YS-SS-2520-IP-4S-ZIP |
| Bag type | 3-side sealed bag | 4-side sealed bag |
| Standard capacity | 10-45 bags/min | 10-45bags/min |
| Bag size | Width : 60-400mm | Width : 60-400mm |
| Length: 60-260mm | Length:60-260mm | |
| Film parameter | packaging material:OPP/AL/PE, PET/VMPET etc. |
|
Film diameter: ≤600mm |
||
Core diameter:76mm |
||
| Total power | 5 KW |
|
| Air pressure | ≥0.5MPa |
|
| Air consumption | HS closure, 0.32NL/cycle |
|
| Outer dimensions (appr.) | 1800*1270*1615mm |
|
| Weight (appr.) | 680kg |
|
| Power supply (optional) | 3N-PN-50Hz 380V/220V (3P 5 wires) |
|
| YS-SS-3620-IP-3S(4S)-ZIP | ||
This series machine is very popular,it can be integrated with various filling systems,suitable for many kinds of products. Continuous pull film movement ,Simple structure, Economical and practical Continuous motion leads to high productivity Lean machine concept enables cost-effective production Maintenance-free servo-technology ensures reliable production PLC controls enable precise machine movements for smooth production and good bag quality Intuitive HMI allows easy operation and short training time Open machine concept for easy access and maintenance Compact machine design for good ergonomics, product-conserving filling and saving space |
||
| Model | YS-SS-3620-IP-3S-ZIP | YS-SS-3620-IP-4S-ZIP |
| Bag type | 3-side sealed bag | 4-side sealed bag |
| Standard capacity | 10-35 bags/min | 10-45bags/min |
| Bag size | Width : 60-500mm | Width : 60-500mm |
| Length: 60-365mm | Length:60-365mm | |
| Film parameter | packaging material:OPP/AL/PE, PET/VMPET etc. |
|
Film diameter: ≤600mm |
||
Core diameter:76mm |
||
| Total power | 5 KW |
|
| Air pressure | ≥0.5MPa |
|
| Air consumption | HS closure, 0.32NL/cycle |
|
| Outer dimensions (appr.) | 2000*1500*2060mm |
|
| Weight (appr.) | 780kg |
|
| Power supply (optional) | 3N-PN-50Hz 380V/220V (3P 5 wires) |
|
| YS-D-2520-CP-1G | ||
| This series machine is very popular,it can be integrated with various filling systems,suitable for many kinds of products. Continuous pull film movement ,Simple structure, Economical and practical Continuous motion leads to high productivity Lean machine concept enables cost-effective production Maintenance-free servo-technology ensures reliable production PLC controls enable precise machine movements for smooth production and good bag quality Intuitive HMI allows easy operation and short training time Open machine concept for easy access and maintenance Compact machine design for good ergonomics, product-conserving filling and saving space |
||
| Model | YS-D-2520-CP-1G | YS-D-2520-CP-1G-T |
| Bag type | Doy-style bag | Doy bag with tape seal |
| Standard capacity | 10-120 bags/min | 10-90 bags/min |
| Bag size | Width : 65-200mm | Width : 65-177mm |
| Depth: 45-110mm | Depth: 40-100mm | |
| Length: 60-300mm | Length: 60-300mm | |
| Film parameter | packaging material:OPP/AL/PE, PET/VMPET etc. |
|
Film diameter: ≤600mm |
||
Core diameter:76mm |
||
| Total power | 5 KW |
|
| Air pressure | ≥0.5MPa |
|
Air consumption |
HS closure, 0.32NL/cycle |
|
Outer dimensions (appr.) |
1800*1270*1615mm |
|
Weight (appr.) |
680kg |
|
Power supply (optional) |
3N-PN-50Hz 380V/220V (3P 5 wires) |
|
| YS-D-3620-CP-1G | ||
| This series machine is very popular,it can be integrated with various filling systems,suitable for many kinds of products. Continuous pull film movement ,Simple structure, Economical and practical Continuous motion leads to high productivity Lean machine concept enables cost-effective production Maintenance-free servo-technology ensures reliable production PLC controls enable precise machine movements for smooth production and good bag quality Intuitive HMI allows easy operation and short training time Open machine concept for easy access and maintenance Compact machine design for good ergonomics, product-conserving filling and saving space |
||
| Model | YS-D-3620-CP-1G | YS-D-3620-CP-1G-T |
| Bag type | Doy-style bag | Doy bag with tape seal |
| Standard capacity | 10-95 bags/min | 10-80 bags/min |
| Bag size | Width : 65-200mm | Width : 65-257mm |
| Depth: 45-110mm | Depth: 40-140mm | |
| Length: 60-300mm | Length: 60-400mm | |
| Film parameter | packaging material:OPP/AL/PE, PET/VMPET etc. |
|
Film diameter: ≤600mm |
||
Core diameter:76mm |
||
| Total power | 5 KW |
|
| Air pressure | ≥0.5MPa |
|
| Air consumption | HS closure, 0.32NL/cycle |
|
| Outer dimensions (appr.) | 2000*1500*2060mm |
|
| Weight (appr.)> | 800kg |
|
| Power supply (optional) | 3N-PN-50Hz 380V/220V (3P 5 wires) |
|
