| YS-305RP | |||
| Corrugated Bundle Squaring & Strapping System | |||
| Power supply | 220V 50/60Hz 1PH 1.0kW | Air Pressure | 10L/cycle |
| Tension Range | 0~45kg | Packing Speed: | 13 packs/min |
| Applicable PP Strap: | width5mm,6mm,thickness0.5~0.8mm | ||
| Applicable PP Strap Spool: | inner dia.：200～210mm，outer dia.：400～500mm，width：170～190mm | ||
| Working Table Height: | 850mm | ||
| Machine Dimension: | L1520×W680×H2000mm | N.W: | 280 kg (arch size1250×500 mm) |
| Packing Measurement: | L870×W560×H780mm | G.W | 330 kg (arch size1250×500 mm) |
| YS-LX500 | |||
| Power supply | 380V 50/60Hz 3PH 1.0kW | ||
| Speed: | 13 packs/min | ||
| Working Table Height: | 850mm | ||
| Machine Dimension: | L1900×W2050×H1470mm | N.W: | 780 kg (arch size1250×500 mm) |
| Packing Measurement: | L2100×W19500×H1500mm | G.W | 820 kg (arch size1250×500 mm) |
| Features: | |||
| Speed 13packs/min | |||

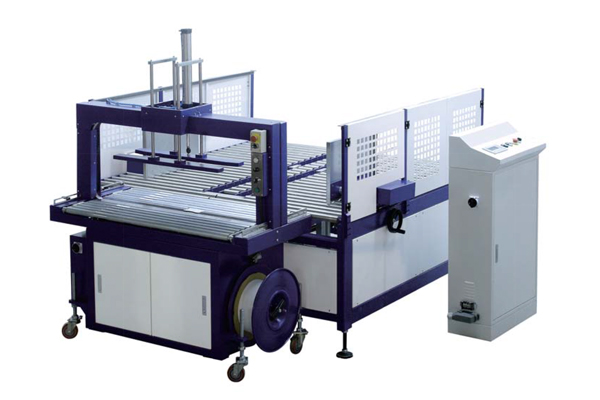

| Corrugated strapping machine YS-305RP | |||
| 4-side squaring bundle control YS-LX500,bundle turner for corrugated carton is optional | |||
| Optional high-grade configuration: YS-505RP | |||
