| YS-ZB-6I Shrink Wrapping Machine With One Lane | |||||
| Parameter | YS-ZB-6I | YS-ZJ-06-IL Longer Shrink tunnel |
|||
| Pre-delivery film structure(Swirl air pump) | L4.5m | ||||
| Speed | 250ml | 4×6 | 60 packs/min |
0-18m/min | |
| 500ml | 3×4 | 50 packs/min |
|||
| 1L | 2×3 | 45 packs/min |
|||
Combination form Bottle capacity Bottle dimension |
2×3 3×4(customer made) 0.25~5L Dia.50~120Height 90~300mm |
Tunnel mesh belt size: 710mm w |
|||
Tunnel size: L3000 ×W1360× H990mm |
|||||
Temerature control scope≤5°C |
|||||
| Power supply | AC380V±10%/50Hz, 10.66kW (3P 5wires) |
AC380V±10%/50 Hz, 91.5kW (1.5kw 56tubes) |
|||
| Machine Size | L8800xW1670xH2508 mm | L4550xW1570 xH2400 mm |
|||
| Working height | 1150+50mm | ||||
| Machine configuration | PLC: "Siemens" |
Touch screen :"Siemens" |
PLC: "Siemens" |
Air switch :"CHINT" |
|
ServoMotor /driver: "Schneiders" x6 |
Motor: "Nord"/" MEIWA" |
Motor:"MEIWA" | Mesh chain motor: ’Nord“/ ”MEIWA“ |
||
Button, Contactor and Relay: "Schneider" |
Transducer: "Schneider" /Danfoes |
Relay ,Button Contactor: :"Schneider" |
Temperature controller :"Omron" |
||
Proximity switch and photoelectricity switch：“SICK” |
Cirulation fan,cooling system fan:2-4 fans |
||||
Cylinder and pneumatic components :"SMC" |
Axial motor :0.1KW 2800R/min 250FZY6-D |
||||
 |
|||||

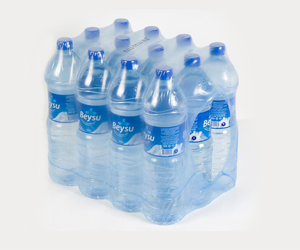

| Function: | PE film shrink wrapping for bottles/cans with pre-delivery structure |
||||
| Features: | Automatic,High speed,easy operation space,run smoothly，economical and practical，more st-able | ||||
