Key:LLDPE Stretch film,POF Shrink Film,POF Film
Stretch films are designed to cling tightly to objects and provide a secure overwrap to protect them from shifting during transport. Stretch films can be used to wrap pallets by machine or by hand, and include clear plastic films, printed or colored stretch wrap. To meet all your packaging needs, YOUNGSUN provide the widest possible collection of Multi Layer LD/ LLDPE/ Milk & Stretch Films. Technical advancement and comparative cost effectiveness make our Multi Layer LD/ LLDPE/ Milk & Stretch Films competitively be ahead of others.
Low Force Cross-Linked Shrink Film：The versatile film, cross-linked, can solve difficulties of shrink packing, like soft, irregular shape, very small size and high products. It has properties of low shrink force, low shrink temperature and high shrinkage. Low shrink force capability benefit product shape won’t be distorted. Low shrink temperature save energy. High shrinkage minimize shrink corner. The wrinkle problem is solved completed with the excellent film. This film runs well on most of shrink packaging
Cross-Linked Shrink Film：This film is advanced, strong, very transparent, high class shrink film. With outstanding shrinkage, strong seals, tear and puncture resistance, it can meet requirements of most shrink packaging applications. Like the skin of products packed, shelf appeal is enhanced remarkably. This film runs well on most types of shrink package systems. Feature: Outstanding shrinkage Strong sealing Tough properties Good machinability High optics Perfect clarity Puncture resistance
-

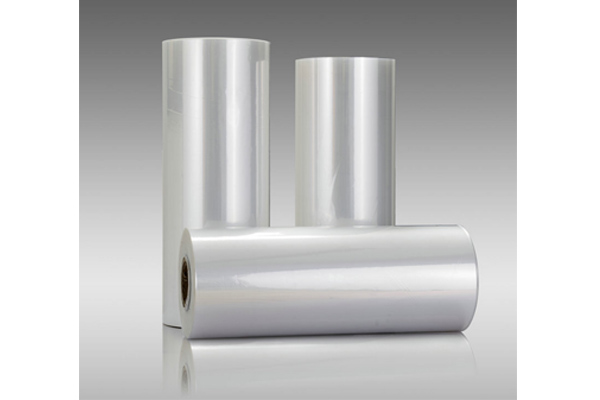

Specification POF Cross-linked shrink film
Film type
Folded/SingleFolded
Size
400mm x 1332mm
Thickness
15um
Weight (kg)/roll
14.4
Thickness tolerance
Standard
Test Result
Thickness tolerance
ZDJ-02
Tolerance
+/- 1.8mm
+1.4 / -1.2mm
Mechanical properties
Tension strength
(Mpa)MD
≥ 110
128
TD
≥ 110
122
Fracture elongation
(%)MD
≥ 90
101
TD
≥ 90
109
Hot properties
Hot shrinkage ratio
120℃, 2.5min
(%)MD
≥ 70
76
TD
≥ 70
80
Hot sealing strength
(N/15MM)MD
≥ 13
14.10
TD
≥ 13
14.25
Others
Friction coefficient
(ud)Dynamic
≤ 0.45
0.18
Static
≤ 0.50
0.21
Haze ratio
(%)≤3.5
2.42
≥90
91.65
-

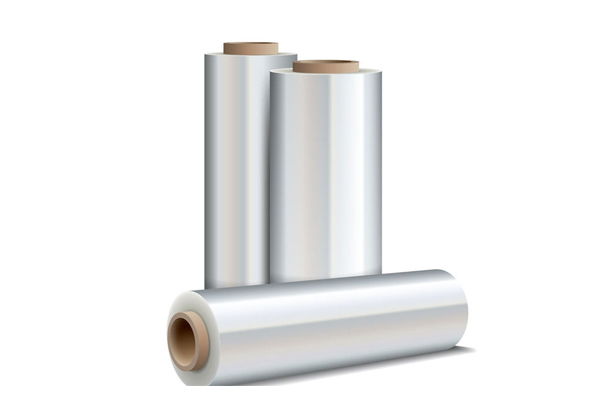

Specification High-performance hot shrink film
Film type
Folded/SingleFolded
Size
400mm x 1332mm
Thickness
15um
Weight (kg)/roll
14.9
Test items
Standard
GB/T 19787-2005Test Result
Thickness tolerance
ZD-01/T
Tolerance
+/- 1.7mm
+1.3 / -1.1mm
Mechanical properties
Tension strength
(Mpa)MD
≥ 100
125
TD
≥ 100
118
Fracture elongation
(%)MD
≥ 90
99
TD
≥ 90
110
Hot properties
Hot shrinkage ratio
120℃, 2.5min
(%)MD
≥ 70
76
TD
≥ 70
80
Hot sealing strength
(N/15MM)MD
≥ 9
13.95
TD
≥ 9
14.1
Others
Friction coefficient
(ud)Dynamic
≤ 0.45
0.28
Static
≤ 0.50
0.31
Haze ratio
(%)≤4.5
3.13
Transmittance
(%)≥90
91.65
-
Specification Low Force Cross-linked Shrink Film
Film type
Folded/SingleFolded
Size
400mm x 1332mm
Thickness
15um
Weight (kg)/roll
14.4
Thickness tolerance
Standard
Test Result
Thickness tolerance
ZD-04
Tolerance
+/- 1.8mm
+1.4 / -1.2mm
Mechanical properties
Tension strength
(Mpa)MD
≥ 110
128
TD
≥ 110
122
Fracture elongation
(%)MD
≥ 90
101
TD
≥ 90
109
Hot properties
Hot shrinkage ratio
120℃, 2.5min
(%)MD
≥ 55
61
TD
≥ 55
65
Hot sealing strength
(N/15MM)MD
≥ 13
14.10
TD
≥ 13
14.25
Others
Friction coefficient
(ud)Dynamic
≤ 0.45
0.18
Static
≤ 0.50
0.21
Haze ratio
(%)≤3.5
2.42
≥90
91.65
- PP Stretch film
-
Width(mm) Thickness(mm) Stretch(Mpa) Broken ratio Machine 500±3 0.025±0.005 ≥15 ↓ ≥400%
→ ≥700%Manual 500±3 0.025±0.005 ≥12 ↓ ≥300%
→ ≥500%
- POF Shrink film
-
Width Thickness Transparency Stretch(Mpa) Broken ratio 300-1300 10micron 96%-98% 20%-80% 110℃-180℃ 300-1300 12micron 95%-98% 20%-80% 110℃-180℃ 300-1300 15micron 94%-97% 20%-80% 110℃-180℃ 300-1300 19micron 93%-96% 20%-80% 110℃-180℃ 300-1300 25micron 92%-95% 20%-80% 110℃-180℃ 300-1300 30micron 90%-93% 20%-80% 110℃-180℃
- PE Shrink film
-
Width Thickness Shrinkage Broken ratio 200 0.02-0.10 20%-80% 150℃-200℃ 400 0.02-0.10 20%-80% 150℃-200℃ 600 0.02-0.10 20%-80% 150℃-200℃ 800 0.02-0.20 20%-80% 150℃-200℃ 1000 0.02-0.20 20%-80% 150℃-200℃ 1200 0.05-0.20 20%-80% 150℃-200℃ 1500 0.05-0.20 20%-80% 150℃-200℃ 2400 0.05-0.20 20%-80% 150℃-200℃
