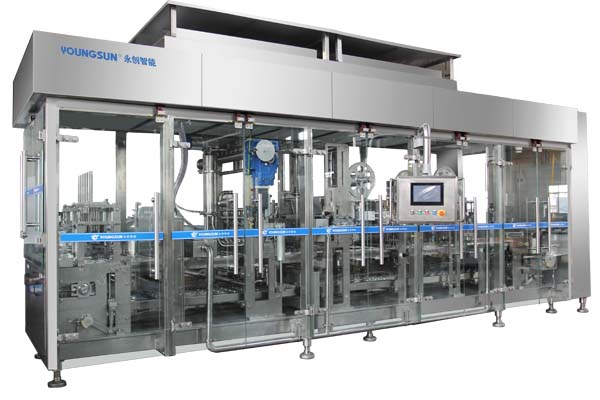

YSZB Serial Automatic Plastic Cup Filling and Sealing Machine

YSZB Series automatic plastic cup filling and sealing machine is capable of

working under full-automatic conditions. The process is from cup loading,

cup falling ,filling,lid foil feeding and sealing ,date printing and product output

and liquid controlling. The filling and sealing machine can be customized to

meet different customers’ needs. The machine has been widely used in

the food industry, packaging of the yogurt ,milk, mineral water, beverage ,

ice cream, seasoning and so on. Applicable Filling material:Liquid: Yogurt,

milk, sauce and so on. Cap film material:Al+plastic laminated film;

paper+plastic laminated film,0.08mm-0.15mm.

Model

YSZB-

6000

YSZB-

9000

YSZB-12000

YSZB-

20000

Step

cups

4 6 8 16

Standard

capacity

6000

cups/h

9000

cups/h

12000

cups/h

20000 cups/h

Filling

volume

50g-300g 50g-300g 50g-300g 50g-300g

Cup

diameter

φ50mm~

φ80mm

φ50mm~

φ80mm

φ50mm~

φ80mm

φ50mm~

φ80mm

Cup height 25-140mm 25-140mm 25-140mm 25-140mm
Cap film Sheet/Roll Sheet/Roll Sheet/Roll Sheet/Roll
Total power 9.5KW 10.5KW 11.5KW 21.5KW
Air pressure ≥0.6MPa ≥0.6MPa ≥0.6MPa ≥0.6MPa

Air

consumption

≥0.8m³/min ≥0.8m³/min ≥0.8m³/min ≥0.8m³/min

Outer

dimensions

(appr.)

5×2.5×3.2

m (L×W×H)

5×2.8×3.2

m (L×W×H)

5.5×3.2×3.2

m (L×W×H)

7×3.5×3.5

m(L×W×H)

Weight(appr.) 3200Kg 4200Kg 4800Kg 6200Kg

Power

supply (optional)

3N-PN-50Hz 380V/220V (3P 5 wires)

Main Configuration:
Servo motor Siemens
Cylinder: SMC/ Festo
Reducer box SEW
Sensor P+F
Electromagnetic clutch Yanxin
Touch screen Siemens
PLC Siemens
Inverter Schneider,Danfoss
Cylinder inspecting sensor SMC
Position inspecting sensor P+F
All low voltage electrical Schneider,Siemens
Warning light Schneider
Central lubrication system BIJUR
Ultraviolet germicidal lamp Heraeus
Parameters and functions are subject to change without further notice.
Optional Function:
1. Servo driving filling
2. Class 100 laminar flow hood
3. Heraeus sterilizing module
4. Fruit grain mixing filling
5. Common high temperature sterilization module
6. Code printer, ink-jet printing
7. Conveyors
8. Can be equipped with automatic packaging line.
Machine Structure:
Conveyor system Automatic feeding cup system
Cup falling system No cup detecting system
Inside cup sterilization system (optional) Filling system
Cap sterilization system (optional) Cap film adding system
Sealing system Cup output system
CIP cleaning nozzle Central lubrication system

Some Samples:
