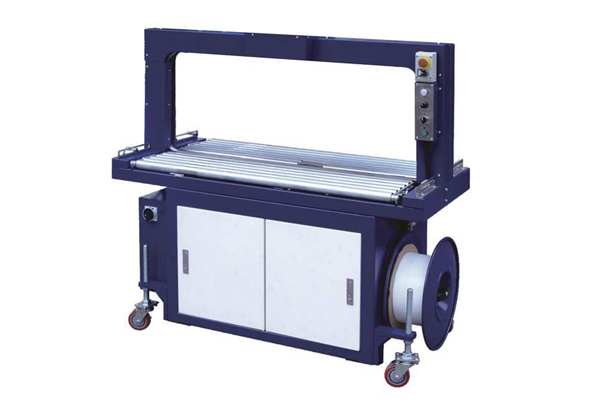

YS-305R(with power driven roller working table)
High speed Automatic Strapping Machine
Model YS-305R(with power driven roller working table)
Power supply 1Phase/220V/50-60Hz/1.0KW 7A
Packing speed 30strap/min
Tension Range 0-45Kg
Hot-adhering Position Bottom
Arch W1250mm*H500mm(It's possible to customize the size)
Working Table Height ≥760mm adjustable(not including the wheel's height)
Applicable PP Strap

width:5mm,6mm thickness:(0.5-0.8)mm

(to be specified)

Applicable Strap Spool 210mm*178mm
Control System PC board control+PLC control "SIEMENS"
Machine Dimensions(mm) L1520 W680 H1500
Packing Measurement(mm) L1600 W800 H1600
Machine Weight(kg) N.W:250/G.W:300
Optional Width 8mm,9mm
