YS-ZB-5040A

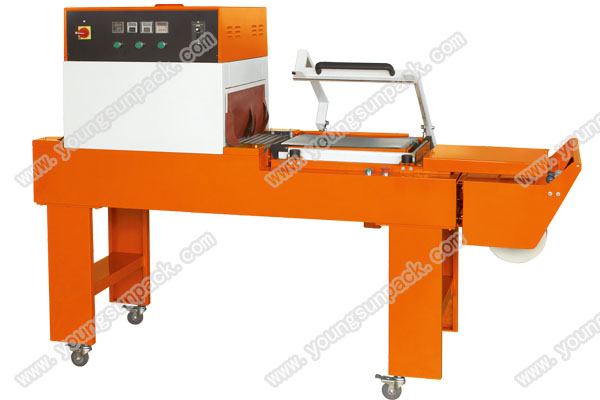

Semi Automatic Shrink Wrapper Machine
L-sealer with shrink tunnel "combo" system
Techical Parameters YS-ZB-5040A
Power supply 3P+N 230V/380V
Maximum power required 5KW
Overall machine dimensions W775 x L2200mm x H1500
Working plate height(on stand) 920mm
Tunnel entrance dimensions 450 x230mm
Tunnel length 700mm
Machine weight 270kg
Sealing area W500mm x L 400mm
Maximum product height 160mm
Impulse sealing system top blade
Maximum roll width 600mm
Compressed air consumption NO
Compressed air pressure NO
Output 8-15pcs/min
Electrical configuration Intermediate relay:"Schneider"/"Omron" Contactor:"Scheider" Button switch:"Scheider"
Temperature controller:"MEIWA" Time relay:"MEIWA" Motor:"MEIWA"
Pneumatic element:"Airtac"

*Notes: Technical data subject to variations without prior notice Output depends on the operator and the type of the package
