AC2000 Automatic Labeling Machine

The principle of the horizontal automatic labeling:

Put the object to be labeled on transmission chain board. After the object is started photoelectricity induction, stepper motor on the cassette mechanism starts up and the machine peels out the label and pastes on the surface of the object. Meanwhile label photoelectricity controls stop of stepper motor by inducing the interval of each label on the label roll so as to control the machine to stop sending label. After the label is pasted on the surface of the object, flatten it by clamping mechanism to finish the whole labeling process. When continual object to be labeled is sent onto the transmission chain board, the machine will repeat the above actions to label the object.

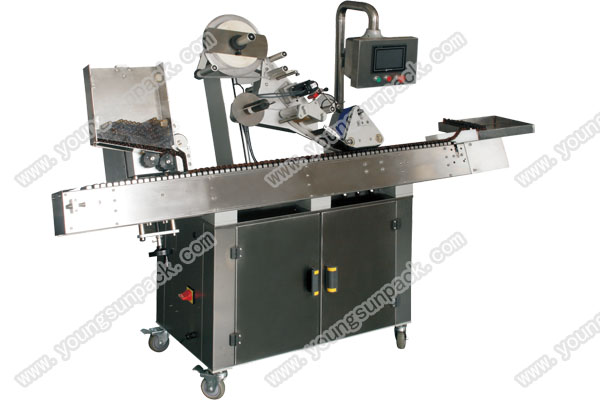

AC2000 Automatic Labeling Machine
This model is designed for labeling cylindrical container which is difficult to stand(usually diameter 10-20mm, length 25-95mm);if the diameter is more than 20mm, it will be usable to make slight modification on the existing basis of the machine
Model AC2000
Power supply 1PAC220V50/60HZ750W
Air pressure 2-5 kg/cm2
Applicable container diameter ¢10-¢20mm(need to customize if out of range)
Applicable container length 25-95mm(need to customize if out of range)
Applicable material adhesive sticker
Applicable label range L(25-70)xH(20-75)mm
Space between labels ≥4mm
Label scroll Inner dia 76mm, Outer dia 280mm
Direction of label scroll clockwise
Labeling speed 0-200bottles/min(depend on the length)
Labeling precision ±0.5mm(except container error)
Table height 900mm
Machine dimension L2000mmxW700mmxH1650mm
Machine weight 250kg
