Key: flow packer,flow wrapper,flow pack machine,horizontal flow wrapper,flow wrapping machinery

YZT2000-XW Machine especially desigened for shrink wrapping food products.with retractable band clamp step for processing products reduced length and cross clamp drive by servomotor.wide range of application for the characteristic of not having pushers that limit the length of the product and its dimensions.



Flow-pack YZB2000 standard commonly used with lower welding.Controlled display and PLC control.Various jaw widths and possibility of multiple jaw.For all applications in which the longitudinal seal on the product is essential. There is range of feeding systems although the standard one has push rods.



Suitable for packaging for bean products,meat prouducts,vegetable and fruits,pickles,snack food,marine food,medical equipment, Pharmacy,electrical component,hardware,etc.

Flow Pack Total:2 products

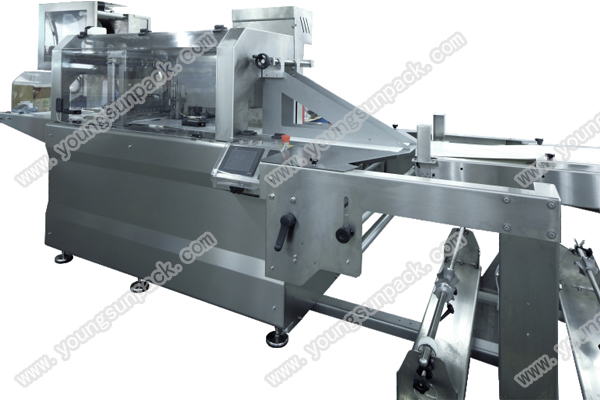

YZT2000-XW
Flow Pack
Model YZT2000-XW
Power supply lP 220V 50/60Hz 1 .0KW(Max)
Mahine dimensions

L5500mm×W1392 mm×H1670 mm

Packing speed

70 packs / min

Maximum width of coil 1000mm
Maximum diameter of coil 350mm
Product dimention L:100MM->> W:1-350mm H:1-280mm

POF Film:

Thicknesses of 10,13,15,19 and 25 microns

This material can be customized in our printing section.

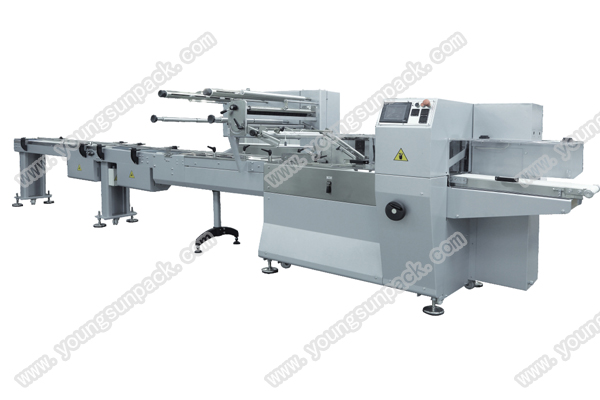

YZB2000
Flow Pack
Model YZB2000
Power supply lP AC220V 50/60Hz 1 .0KW(Max)
Mahine dimensions

L5250mm×W1250mm×H1600 mm

Packing speed

120 packs / min

Maximum width of coil 700mm
Maximum diameter of coil 350mm
Product dimention L:100MM->> W:1-300mm H:1-140mm

Film parameters:

Type:BOFF Film

Thicknesses: 15,20,25,30,40y 50 micras

This material can be customized in our printing section.
